Product Name: Fold-away Crank Handles Model Number: HY8310.25 Brand Name: Huayang Executive Standard: Material: Reinforced nylon, Plastic,Steel Surfaced Process: Black Place of Origin: Zhejiang, China (Mainland)
Product specification

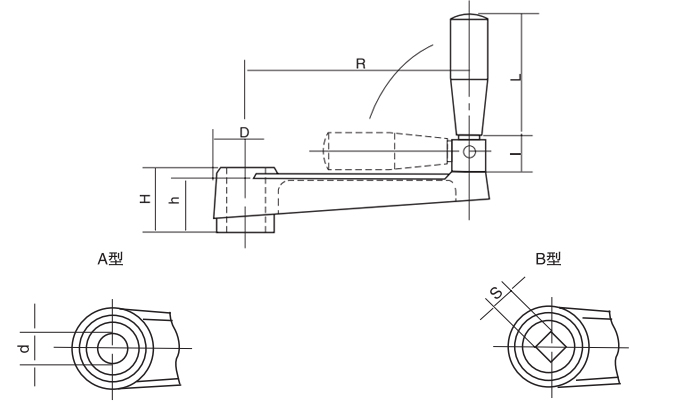

Drawing
Parameter Size
| Item No. | Main dimensions（mm） | Mounting hole | |||||||
| Type A | Type B | R | L | H | h | I | d | S | D |
| HY8310.25\A12x100 | HY8310.25\B12x12x100 | 100 | 50 | 38 | 34 | 15 | 12 | 12 | 34 |
| HY8310.25\A14x125 | HY8310.25\B14x14x125 | 125 | 63 | 46 | 42 | 20 | 14 | 14 | 40 |
| HY8310.25\A16x160 | HY8310.25\B17x17x160 | 160 | 80 | 55 | 50 | 20 | 16 | 17 | 44 |
