Product Name: Two-spoke Clutch Handwheels With Revolving Handle Model Number: HY8313.23 Brand Name: Huayang Executive Standard: Material: Aluminum alloy Surfaced Process: Black Place of Origin: Zhejiang, China (Mainland)
Product specification

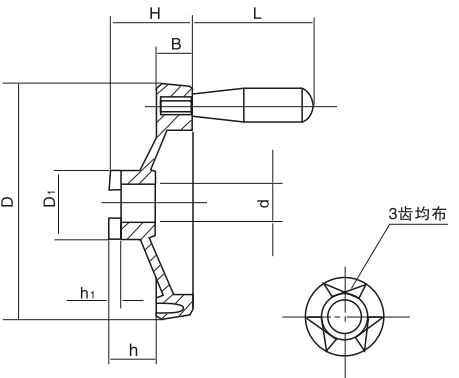

Drawing
Parameter Size
| Item No. | Main dimensions（mm） | Mounting hole | ||||||
| Type A | D | H | B | L | d | D₁ | h | h₁ |
| HY8313.23\17x125 | 125 | 43 | 20 | 63 | 17 | 35 | 23 | 5 |
| HY8313.23\16(20)x160 | 160 | 50 | 22 | 80 | 16、20 | 40 | 26 | 6 |
| HY8313.23\22x200 | 200 | 58 | 25 | 80 | 22 | 45 | 32 | 7 |
