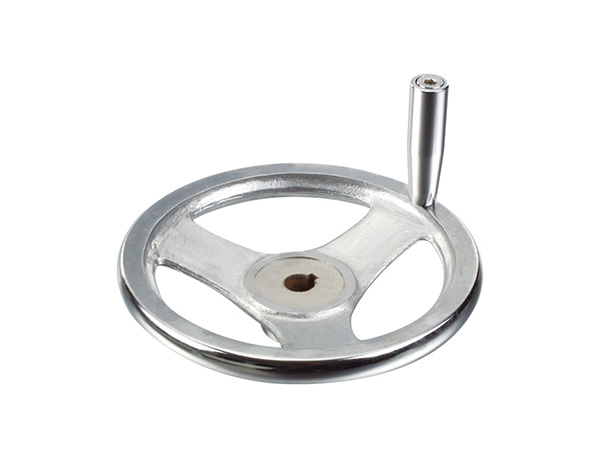

Product Name: Spoked Handwheels With Revolving Handle Model Number: HY8313.27 Brand Name: Huayang Executive Standard: Material: (Handwheel) Cast iron、(Handle) Steel Surfaced Process: Sand-blasted chrome bright Place of Origin: Zhejiang, China (Mainland)
Product specification

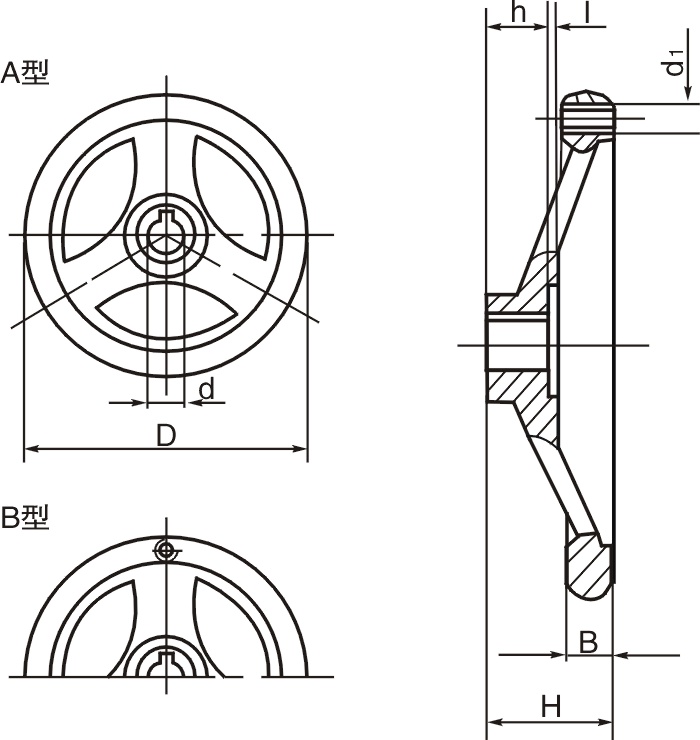

Drawing
Parameter Size
| Item No. | Main dimensions（mm） | Mounting hole | |||||
| Type A | Type B | D | H | B | d | h | d₁ |
| HY8313.27\A(10~18)x215 | HY8313.27\B(10~18)x215 | 215 | 50 | 18 | 10~18 | 29 | M10 |
