Product Name: Lobe Knobs Model Number: HY8314.11 Brand Name: Huayang Executive Standard: Material: Knob （Bakelite ）、 Metal insert （Steel） Surfaced Process: Black Place of Origin: Zhejiang, China (Mainland)
Product specification

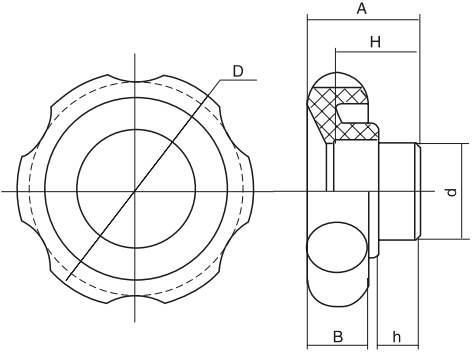

Drawing
Parameter Size
| Item No. | Main dimensions（mm） | Mounting hole | ||||
| Bakelite | D | A | B | H | d | h |
| HY8314.11\29x70 | 70 | 33 | 18 | 25 | 29 | 12 |
| HY8314.11\33.5x80 | 80 | 38.5 | 20 | 30 | 33.5 | 13.5 |
