Product Name: Lobe Knobs Model Number: HY8314.23 Brand Name: Huayang Executive Standard: Material: （Knob ）Bakelite、（Cup）Plasti Surfaced Process: Cup （White/Red） Place of Origin: Zhejiang, China (Mainland)
Product specification

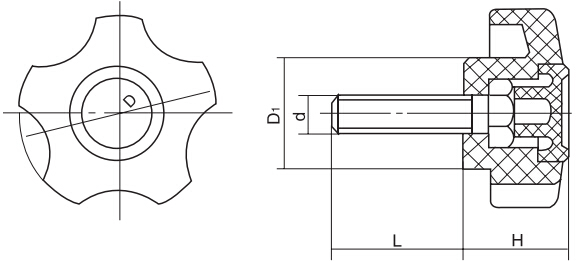

Drawing
Parameter Size
| Item No. | Main dimensions（mm） | Threaded stud | |||
| Bakelite | D | H | D₁ | d | L |
| HY8314.23\M6x34 | 34 | 16 | 18 | M6 | Self matching Small hexagonal head stu |
| HY8314.23\M8x38 | 38 | 18 | 20 | M8 | |
| HY8314.23\M10x42 | 42 | 22 | 22 | M10 | |
