Product Name: Lobe Knobs Model Number: HY8314.26 Brand Name: Huayang Executive Standard: Material: （Knob ）Bakelite、（Metal insert）Steel Surfaced Process: （ Metal insert ） Blackened/Zincing Place of Origin: Zhejiang, China (Mainland)
Product specification

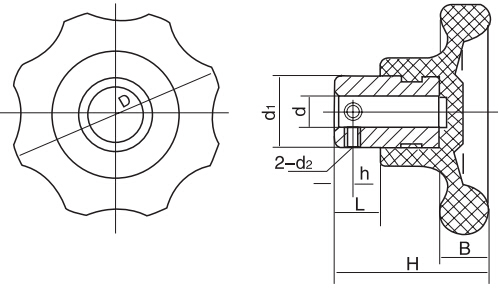

Drawing
Structure diagram
| Item No. | Main dimensions（mm） | Threaded stud | ||||||
| Bakelite | D | H | B | L | d | h | d₁ | d₂ |
| HY8314.26\8x63 | 63 | 44 | 14 | 15 | 8 | 7.5 | 20 | M5 |
| HY8314.26\10x80 | 80 | 50 | 15 | 15 | 10 | 7.5 | 24 | M5 |
| HY8314.26\12x100 | 100 | 56 | 16 | 15 | 12 | 7.5 | 48 | M5 |
