Product Name: Digital Position Indicators Model Number: TA09 Brand Name: Huayang Executive Standard: Material: Surfaced Process: Place of Origin: Zhejiang, China (Mainland)
Product specification
产品外观

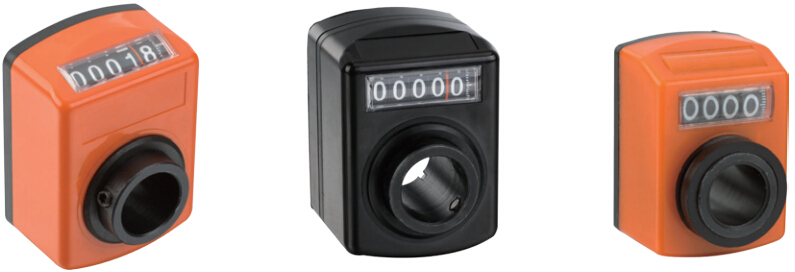

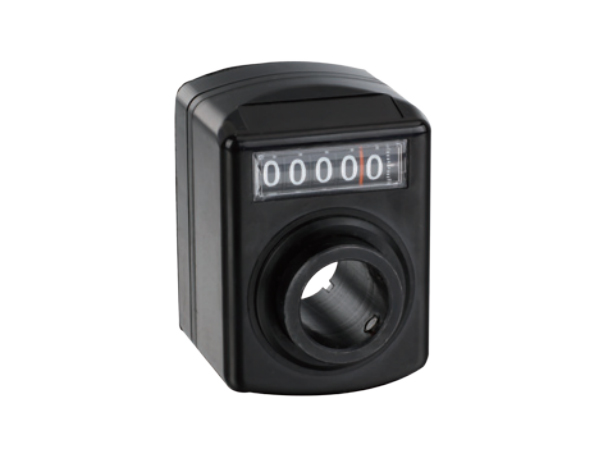

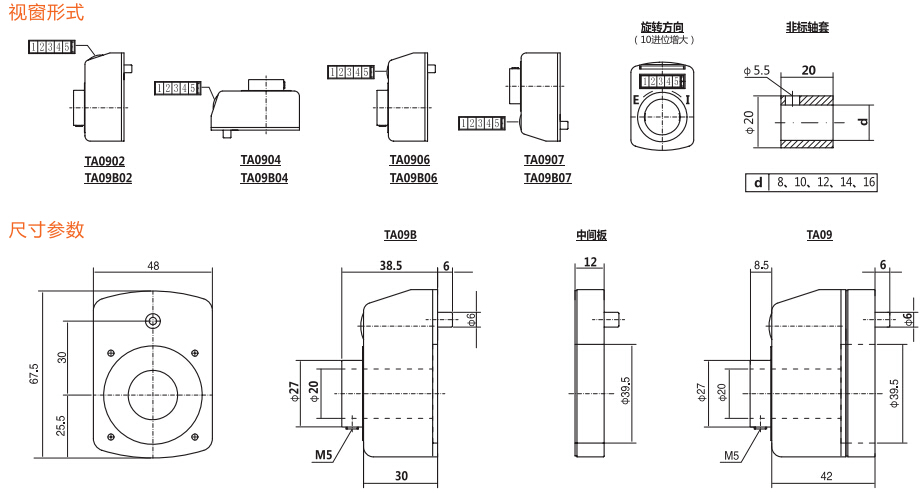

Structure diagram
Parameter Size
| Type | Reading position | Axial pitch (mm) | Direction of rotation | Hollow spindle bore diameter | Colour | Reading after one revolution | |||||
| TA09 | inclined upper 02 inclined lower 04 front upper 06 front lower 07 | 1.0 | clockwise I anti-clockwise E | 20mm H7 standard | orange O black S | 0 | 0 | 0 | 1 | . | 0 |
| 2.0 | 0 | 0 | 0 | 2 | . | 0 | |||||
| 3.0 | 0 | 0 | 0 | 3 | . | 0 | |||||
| 4.0 | 0 | 0 | 0 | 4 | . | 0 | |||||
| TA09B | 5.0 | 0 | 0 | 0 | 5 | . | 0 | ||||
| 6.0 | 0 | 0 | 0 | 6 | . | 0 | |||||
| 8.0 | 0 | 0 | 0 | 8 | . | 0 | |||||
| 10.0 | 0 | 0 | 1 | 0 | . | 0 | |||||
| Example of order: TA09-02-4.0-I-20-O | |||||||||||
TA09=TA09B+ 中间板
The bore diameter of hollow spindle less than 20mm adopts spindle sleeve.
Special reading after one revolution available upon request.
