Product Name: Oil Cups Model Number: HY8317.6 Brand Name: Huayang Executive Standard: Material: Brass Surfaced Process: Place of Origin: Zhejiang, China (Mainland)
Product specification

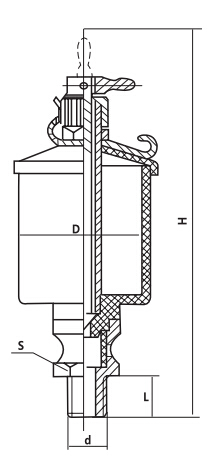

| Item No. | Max capacity | Main dimension | Nut | ||||
| (Brass) | cm3 | d1 | L | H | D | S | |
| HY8317.6\d=3 | 16 | M10x | 12 | 105 | 32 | 13 0-0.27 | M8×1 |
| HY8317.6\d=3 | 25 | M14x1.5 | 12 | 115 | 36 | 18 0-0.27 | M8×1 |
| HY8317.6\d=4 | 50 | M14x1.5 | 12 | 130 | 45 | 18 0-0.27 | M10×1 |
| HY8317.6\d=5 | 100 | M14x1.5 | 12 | 140 | 55 | 18 0-0.27 | M10×1 |
| HY8317.6\d=7 | 200 | M16x1.5 | 14 | 170 | 70 | 21 0-0.27 | M10×1 |
| HY8317.6\d=8 | 400 | M16x1.5 | 14 | 190 | 85 | 21 0-0.27 | M10×1 |
