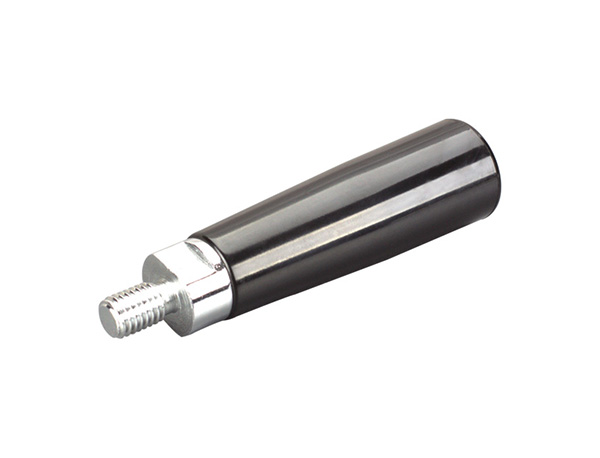

Product Name: Revolving Handles Model Number: HY8310.5-2 Brand Name: Huayang Executive Standard: Material: Bakelite，Steel Surfaced Process: (handle) Black,glossy finish 、(Steel) Chrome bright Place of Origin: Zhejiang, China (Mainland)
Product specification

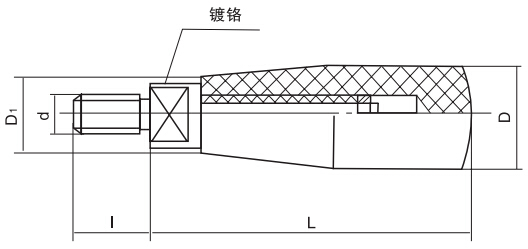

Drawing
Parameter Size
| Item No. | Main dimensions（mm） | Threaded shank | |||
| Bakelite | L | D | D₁ | d | l |
| HY8310.5-2\M8x71 | 71 | 23 | 19 | M8 | 15 |
| HY8310.5-2\M10x90 | 90 | 26 | 21 | M10 | 16 |
| HY8310.5-2\M12x102 | 102 | 28 | 22 | M12 | 18 |
