Product Name: Revolving Handles Model Number: HY8310.5-3 Brand Name: Huayang Executive Standard: Material: Plastic、Steel Surfaced Process: (Handle) Matt black、(Steel) Zincing Place of Origin: Zhejiang, China (Mainland)
Product specification

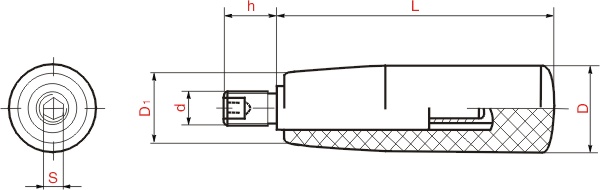

Drawing
Parameter Size
| Item No. | Main dimensions（mm） | Threaded shank（mm） | ||||
| Plastic | L | D | D₁ | d | h | S |
| HY8310.5-3\M6x28 | 28 | 14 | 11 | M6 | 10 | 3 |
| HY8310.5-3\M6x40 | 40 | 18 | 15 | M6 | 13 | 3 |
| HY8310.5-3\M6x50 | 50 | 21 | 17 | M6 | 13 | 3 |
| HY8310.5-3\M8x65 | 65 | 23 | 19 | M8 | 15 | 4 |
| HY8310.5-3\M10x80 | 80 | 26 | 21 | M610 | 16 | 5 |
