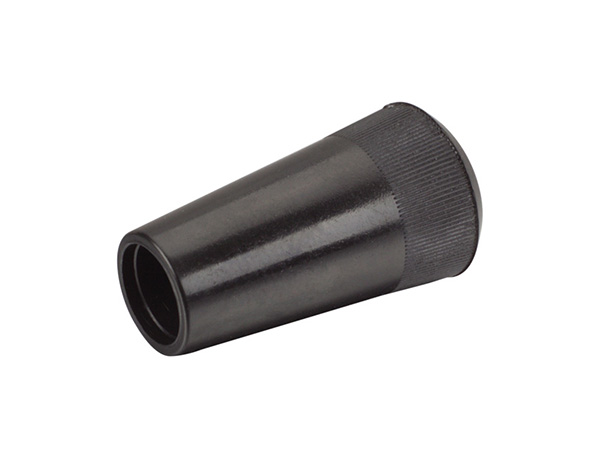

Product Name: Knurled Knobs Model Number: HY8311.23 Brand Name: Huayang Executive Standard: Material: Plastic Surfaced Process: Black Place of Origin: Zhejiang, China (Mainland)
Product specification

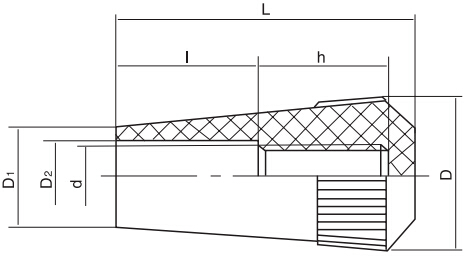

Drawing
Parameter Size
| Item No. | Main dimensions（mm） | Mounting hole | |||||
| Plastic | L | D | D₁ | D₂ | d | I | h |
| HY8311.23\M8x42 | 42 | 22 | 15 | 10.5 | M8 | 20 | 19 |
| HY8311.23\M10x50 | 50 | 25 | 17 | 12.5 | M10 | 24 | 23 |
| HY8311.23\M12x60 | 60 | 32 | 22 | 17 | M12 | 28 | 28 |
