Product Name: Solid Handwheels With Revolving Handle Model Number: HY8313.11 Brand Name: Huayang Executive Standard: Material: Bakelite Surfaced Process: Black, glossy finish Place of Origin: Zhejiang, China (Mainland)
Product specification

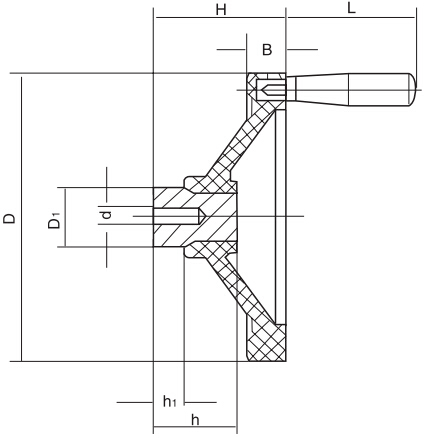

Drawing
Parameter Size
| Item No. | Main dimensions（mm） | Mounting hole | ||||||
| Bakelite | D | H | B | L | d | D₁ | h | h₁ |
| HY8313.11\6x100 | 100 | 41 | 14 | 48 | 6 | 24 | 26 | 10 |
| HY8313.11\8x120 | 120 | 48 | 17 | 64 | 8 | 28 | 30 | 12 |
| HY8313.11\10x160 | 160 | 59 | 22 | 74 | 10 | 36 | 35 | 15 |
| HY8313.11\10x190 | 190 | 77 | 25 | 74 | 10 | 40 | 45 | 15 |
