Product Name: Lobe Knobs Model Number: HY8314.26 Brand Name: Huayang Executive Standard: Material: Knob （ Bakelite）、 Metal insert （Steel） Surfaced Process: Knob （ Black）/ Metal insert （Blackened /Zincing） Place of Origin: Zhejiang, China (Mainland)
Product specification

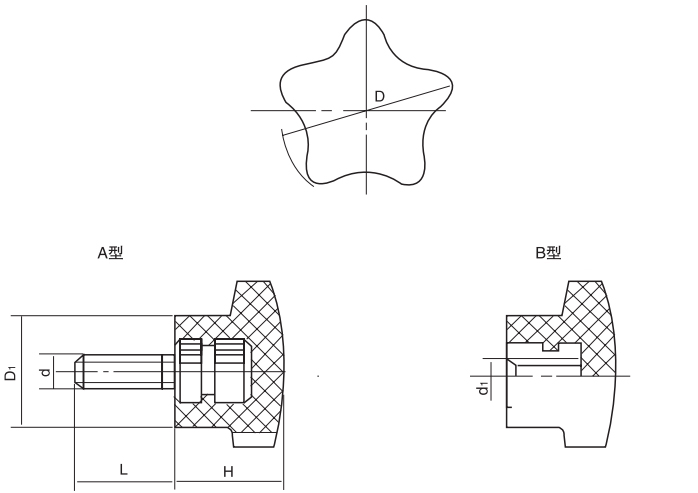

Drawing
Parameter Size
| Item No. | Main dimensions（mm） | Mounting hole | ||||
| Type A | Type B | D | H | D₁ | d | L |
| HY8314.22\AM5x25xL | - | 25 | 20 | 15 | M5 | 8、14、20、30 |
| HY8314.22\AM6x32xL | - | 32 | 24 | 20 | M6 | 14、18、25、30、40 |
| HY8314.22\AM8x40xL | - | 40 | 28 | 22 | M8 | 18、25、30、40、50 |
| HY8314.22\AM10x50xL | HY8314.22\BM10x50 | 50 | 34 | 25 | M10 | 18、25、30、40、50 |
| HY8314.22\AM12x63xL | - | 63 | 38 | 26 | M12 | 25、30、40、50、63 |
