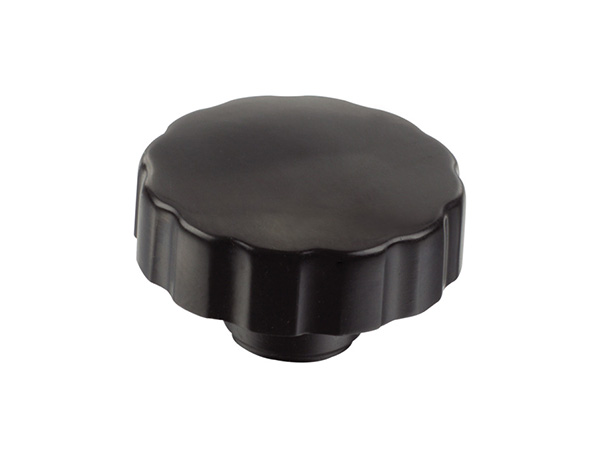

Product Name: Lobe Knobs Model Number: HY8314.25 Brand Name: Huayang Executive Standard: Material: （Knob ）Bakelite 、（Metal insert ）Steel Surfaced Process: （Metal insert ） Blackened /Zincing Place of Origin: Zhejiang, China (Mainland)
Product specification

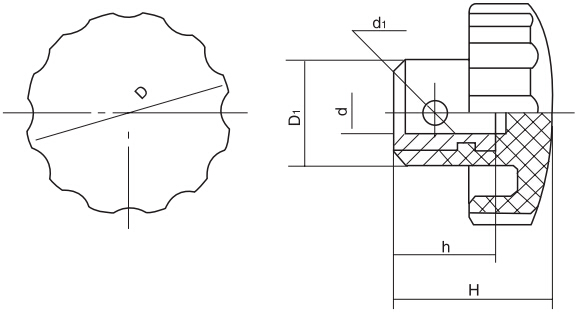

Drawing
Parameter Size
| Item No. | Main dimensions（mm） | Threaded stud | |||||
| Type A | Type B | D | H | D₁ | d | h | d₁ |
| HY8314.25\A8x40 | HY8314.25\BM8x40 | 40 | 25 | 18 | 8 | 16 | 3 |
| HY8314.25\A10x50 | HY8314.25\BM10x50 | 50 | 30 | 22 | 10 | 20 | 3 |
