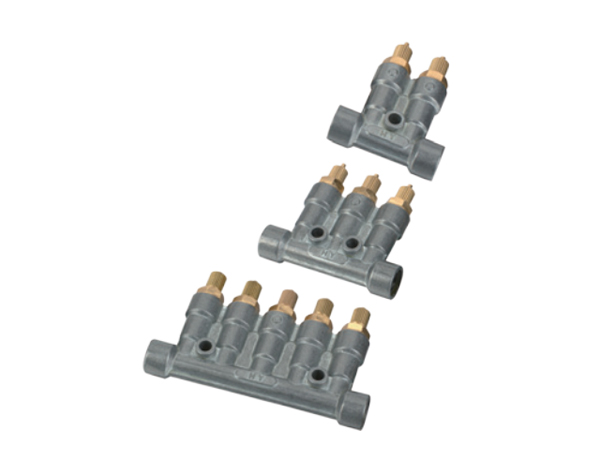

Product Name: Pressuring Positive DisPlacement Oil Distributor Model Number: HY8318.11 Brand Name: Huayang Executive Standard: Material: Zinc alloy、brass Surfaced Process: Place of Origin: Zhejiang, China (Mainland)
Usage and characteristics
◇ T861 quantitative oil distributor transports the corresponding amount of lubricant to the lubrication points as it's preconfigured in order to quantitatively lubricate the machine
oil volume and the quantity of oil discharge outlet can be adjusted according to actual demand
◇ T861 is of positive displacement thin oil type. In order to distinguish the oil volume o
every joint, different marks aiming to distinguish colors are marked on every oil distributor: R represents red, G green, H yellow and B black.
◇T861 oil distributor features accurate lubrication and it can operates on the basis of fixed-pointfixed-quantity and fixed-voltage, thus, it is widely applied to various machines
Technical parameter
| Model | Oil output pressure | Parameter items | |||
| The point oil pump capacity at a time | |||||
| RED | GREEN | YELLOW | BLACK | ||
| HY8318.11\T861 | 1.5Mpa | 0.03ml | 0.06ml | 0.10ml | 0.15ml |

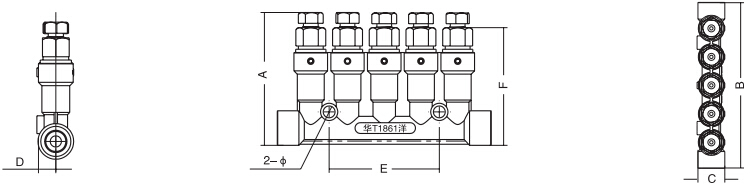

Profile and installation dimensions
| Model | Main dimensions | ||||||
| A | B | C | D | E | F | 2-φ | |
| HY8318.11\T8618 | 62 | 99 | 16.5 | 8.5 | 51 | 54.5 | 5.5 |
| HY8318.11\T8617 | 61 | 65 | 16.5 | 8.5 | 17 | 43 | 5.5 |
| HY8318.11\T8616 | 62 | 48 | 16.5 | 8.5 | 54.5 | 5.5 | |
