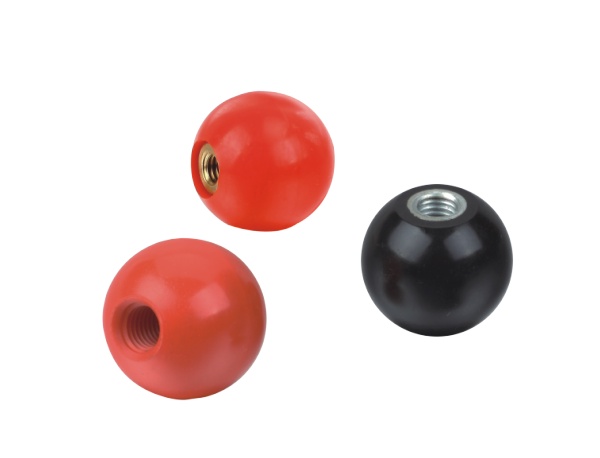

Product Name: Ball Knobs Model Number: HY8311.1 Brand Name: Huayang Executive Standard: JB/T 7271.1-94 (GB4141.11-84) Material: Bakelite, Brass / Steel Surfaced Process: Black, Red Place of Origin: Zhejiang, China (Mainland)
Product specification

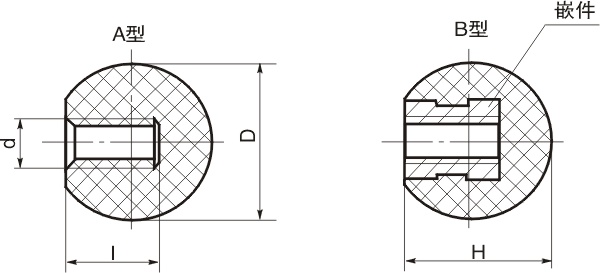

Drawing
Parameter Size
| Item No. | Main dimensions（mm） | Mounting hole | |||
| Type A (black/red) | Type B (black/red) | D | H | d | I |
| HY8311.1\AM5x2 | HY8311.1\BM5x20 | 20 | 18 | M5 | 12 |
| HY8311.1\AM6x20(25) | HY8311.1\BM6x20(25) | 20、25 | 18 | M6 | 14 |
| HY8311.1\AM8x25(32) | HY8311.1\BM8x25(32) | 25、32 | 22.5 | M8 | 16 |
| HY8311.1\AM10x32(40) | HY8311.1\BM10x32(40) | 32、40 | 29 | M10 | 20 |
| HY8311.1\AM12x40(50) | HY8311.1\BM12x40(50) | 40、50 | 36 | M12 | 25 |
| HY8311.1\AM16x50 | HY8311.1\BM16x50 | 50 | 45 | M16 | 30 |
