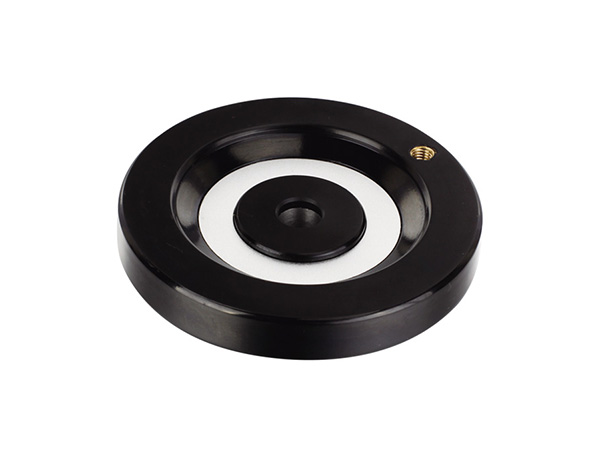

Product Name: Solid Handwheels With Revolving Handle Model Number: HY8313.8-1 Brand Name: Huayang Executive Standard: Material: Bakelite Surfaced Process: Black, glossy finish Place of Origin: Zhejiang, China (Mainland)
Product specification

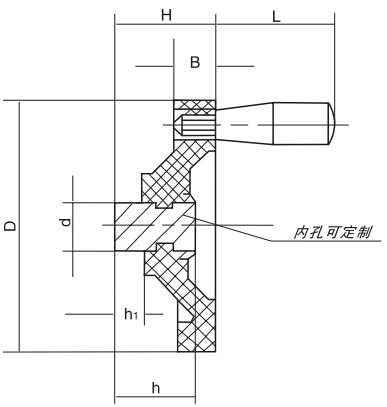

Drawing
Parameter Size
| Item No. | Main dimensions（mm） | Mounting hole | ||||||
| Type A | Type B | D | H | B | L | d | h | h₁ |
| HY8313.8-1\A28x100 | HY8313.8-1\B28x100 | 100 | 43 | 15 | 50 | 28 | 37 | 15 |
| HY8313.8-1\A32x125 | HY8313.8-1\B32x125 | 125 | 45 | 18 | 63 | 32 | 40 | 15 |
| HY8313.8-1\A36x160 | HY8313.8-1\B36x160 | 160 | 48 | 20 | 80 | 36 | 40 | 15 |
| HY8313.8-1\A40x200 | HY8313.8-1\B40x200 | 200 | 58 | 20 | 80 | 40 | 43 | 15 |
