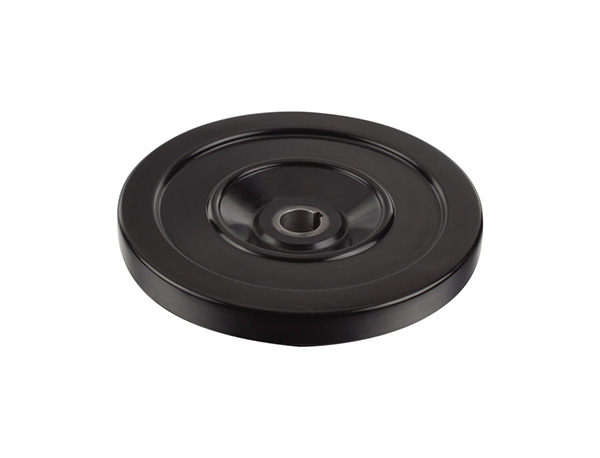

Product Name: Solid Handwheels Model Number: HY8313.32 Brand Name: Huayang Executive Standard: Material: Bakelite Surfaced Process: Black Place of Origin: Zhejiang, China (Mainland)
Product specification

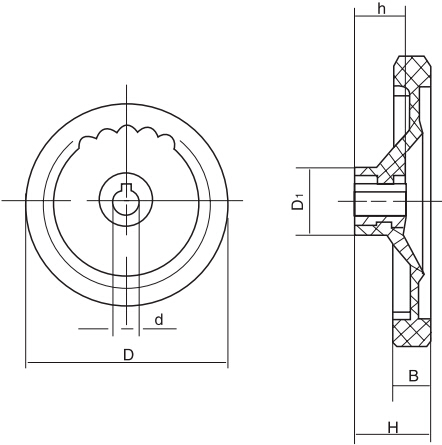

Drawing
Parameter Size
| Item No. | Main dimensions（mm） | Mounting hole | |||||
| Bakelite | D | H | B | D₁ | d | h | Note |
| HY8313.32\25x220 | 220 | 50 | 24 | 50 | 25 | 36 | |
| HY8313.32\50x220 | 220 | 50 | 24 | 78 | 50 | 32 | Blind hole without keyway |
