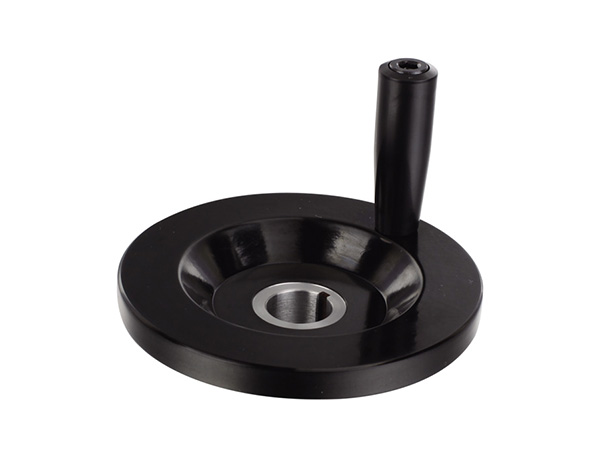

Product Name: Solid Handwheels With Revolving Handle Model Number: HY8313.12 Brand Name: Huayang Executive Standard: Material: Bakelite Surfaced Process: Black, glossy finish Place of Origin: Zhejiang, China (Mainland)
Product specification

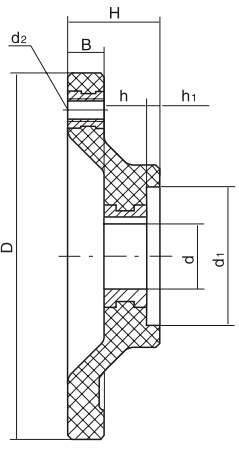

Drawing
Parameter Size
| Item No. | Main dimensions（mm） | Mounting hole | ||||||
| Bakelite | D | H | B | d | h | h₁ | d₁ | d₂ |
| HY8313.12\18x100 | 100 | 25 | 10 | 18 | 11.5 | 3.5 | 38 | M6 |
| HY8313.12\18x120 | 120 | 23 | 12 | 18 | 9 | 4 | 38 | M8 |
